- Ürün Kodu : CH3185
- Ürün Adı : Caliper Guides & Seals Repair Kit (New Model)
- Ürün Ölçüsü/Ağırlığı : 1,760 gr

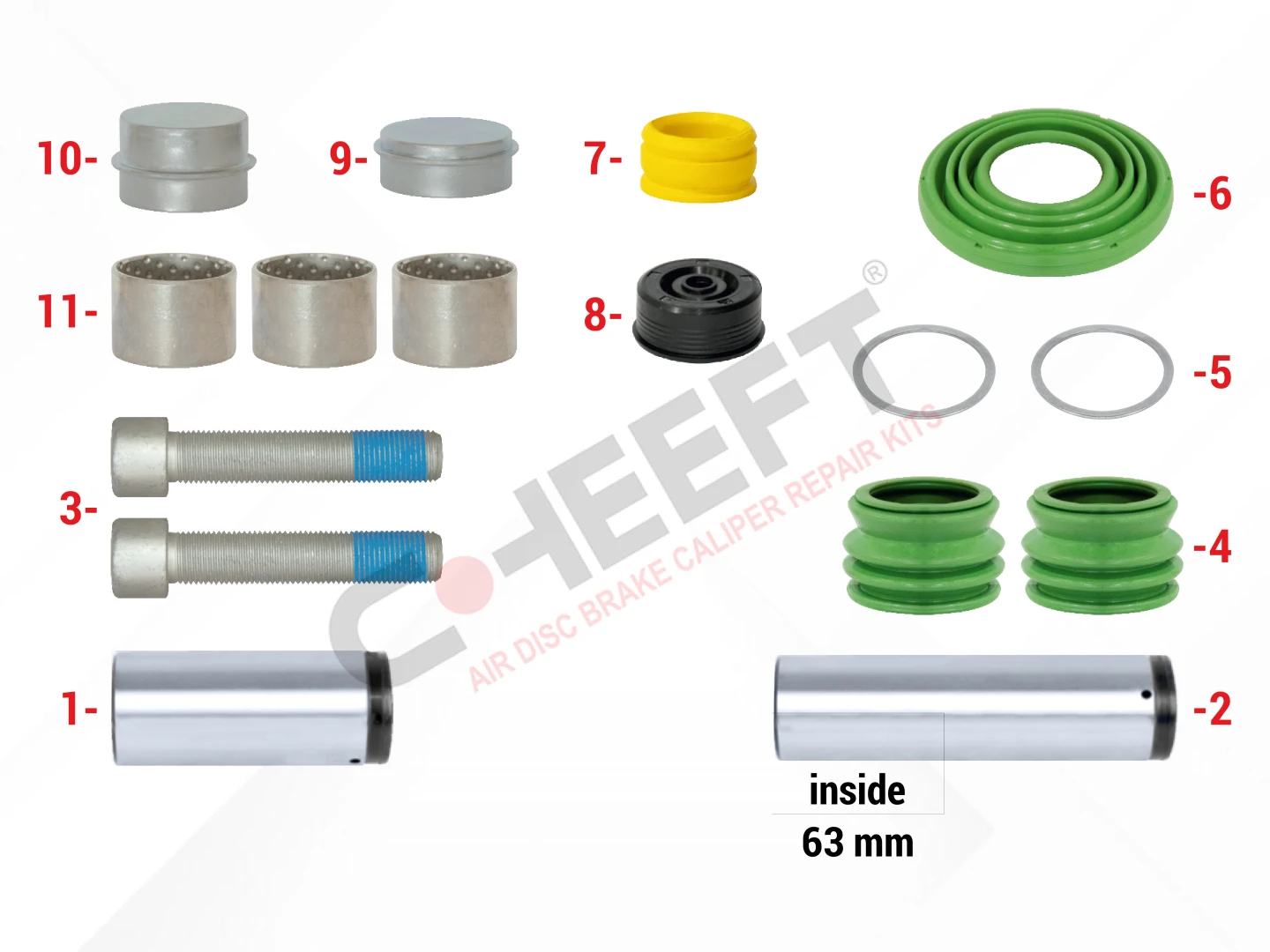

İçindekiler
| Sıra | Görsel | Kod | Adı | Boyut |
| 1 |
|
CH3503 | Guide Pin Ø37,70 x 76 mm | 0,475 gr |
| 2 |
|
CH3511 | Guide Pin Ø38 x 63 / 118 mm | 0,660 gr |
| 3 |
|
CH3512 | Bolt M16 x 1,5 x 80 mm | 0,150 gr |
| 4 |
|
CH3533 | Guide Pin Gaiter | 0,015 gr |
| 5 |
|
CH3544 | Ring Ø44,5 x 1,25 mm | 0,004 gr |
| 6 |
|
CH3531 | Bolt Dust Excluder | 0,025 gr |
| 7 |
|
CH3551 | Plug | 0,005 gr |
| 8 |
|
CH3552 | Seal | 0,015 gr |
| 9 |
|
CH3542 | Steel Cap Ø42,10 x 17 mm | 0,030 gr |
| 10 |
|
CH3543 | Steel Cap Ø42,10 x 29 mm | 0,045 gr |
| 11 |
|
CH3527 | Bush Ø42 x Ø38 x 30 mm | 0,055 gr |
Not: İlgili parçalardan bazı setlerde bir kaç adet bulunabilir.
| Ad | Değer |
| WBC | 6402259212 |
| OTHER | 230302377 |
