Air Disc Brake Caliper Repair Kit
+90 332 251 47 70
Lisan
  • Ürün Kodu : CH1023
  • Ürün Adı : Caliper Guides & Seals Repair Kit
  • Ürün Ölçüsü/Ağırlığı : 2,160 gr

İçindekiler

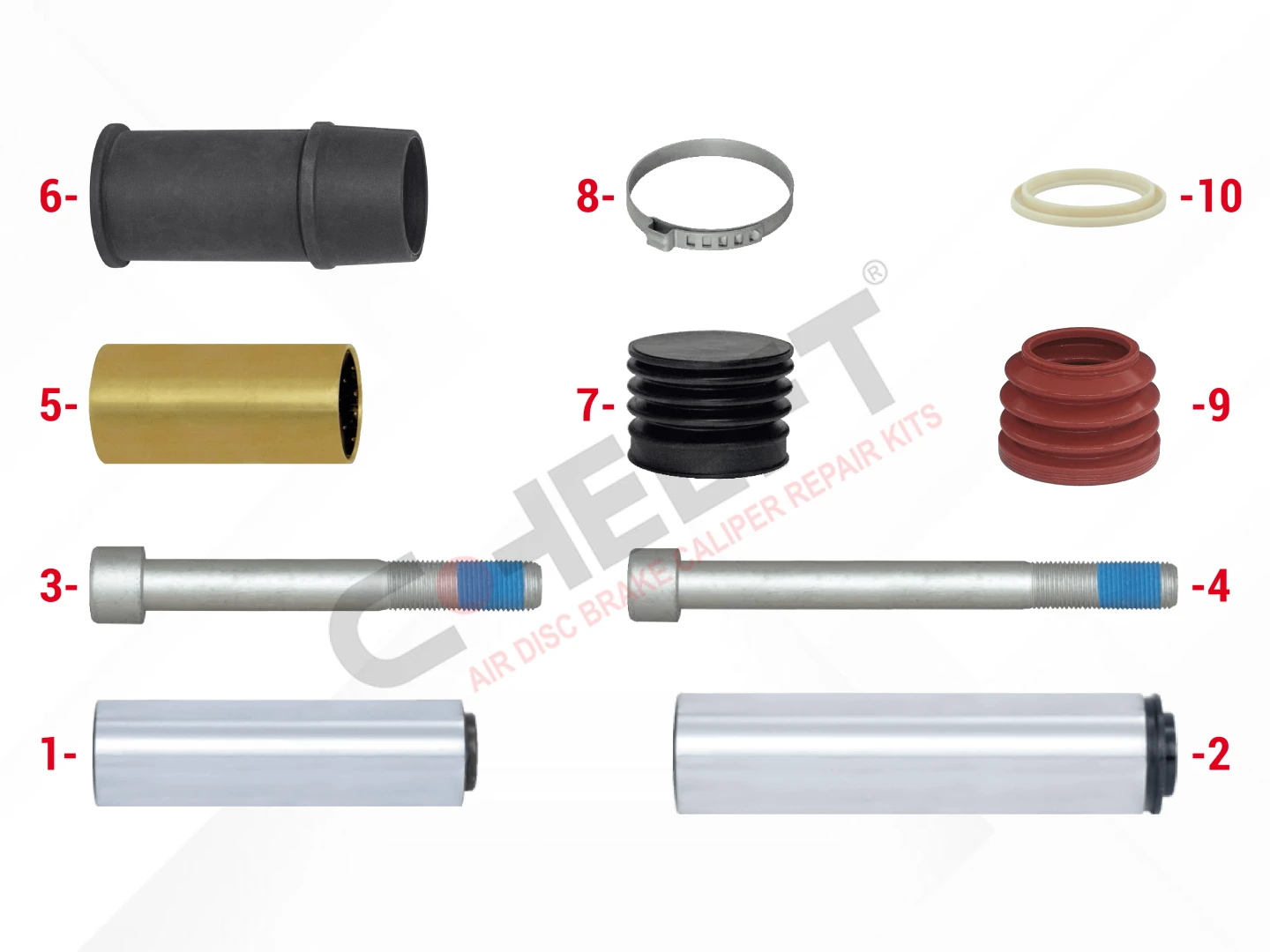

Sıra Görsel Kod Adı Boyut
1 Guide Pin Ø34 X 120 Mm CH1503 Guide Pin Ø34 X 120 Mm 0,580 gr
2 Guide Pin Ø36 X 145 Mm CH1507 Guide Pin Ø36 X 145 Mm 0,835 gr
3 Bolt M16 X 1,5 X 125 Mm CH1516 Bolt M16 X 1,5 X 125 Mm 0,225 gr
4 Bolt M16 X 1,5 X 150 Mm CH1518 Bolt M16 X 1,5 X 150 Mm 0,260 gr
5 Bronze Bush Ø40 X Ø36 X 82 Mm CH1521 Bronze Bush Ø40 X Ø36 X 82 Mm 0,155 gr
6 Rubber Bush Ø40 X Ø34 X 95 Mm CH1526 Rubber Bush Ø40 X Ø34 X 95 Mm 0,045 gr
7 Outer Boot CH1532 Outer Boot 0,025 gr
8 Outer Boot Clamp CH1552 Outer Boot Clamp 0,010 gr
9 Inner Boot CH1531 Inner Boot 0,020 gr
10 Inner Boot Ring CH1551 Inner Boot Ring 0,005 gr

Not: İlgili parçalardan bazı setlerde bir kaç adet bulunabilir.

Ad Değer
KNR II358510062
MB 000 420 1182 - 050 121 1047
SCN 1415149 - 1415154 - 1415515
