- Ürün Kodu : CH1003
- Ürün Adı : Caliper Guides & Seals Repair Kit
- Ürün Ölçüsü/Ağırlığı : 1,505 gr

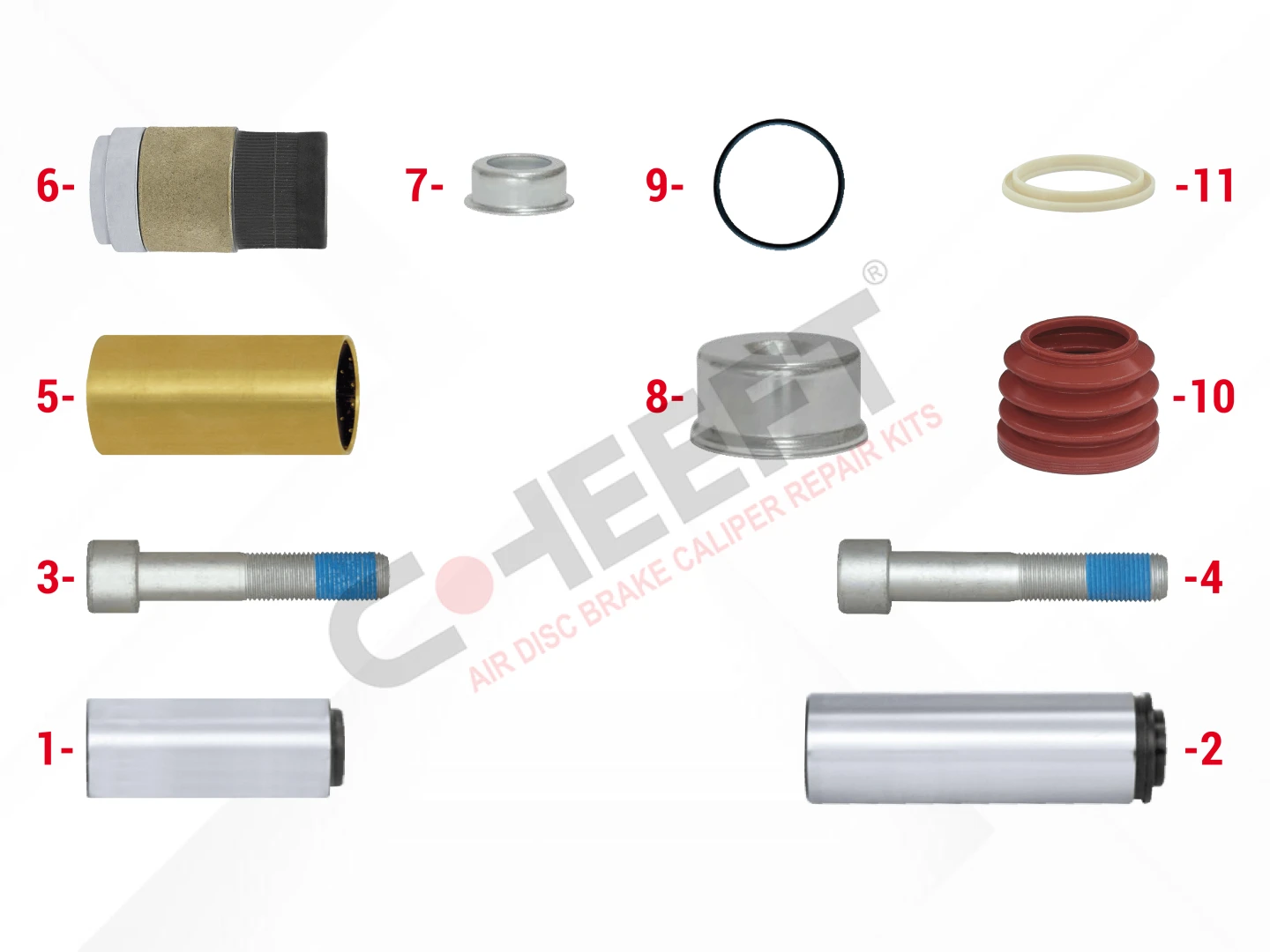

İçindekiler
| Sıra | Görsel | Kod | Adı | Boyut |
| 1 |
|
CH1501 | Guide Pin Ø32 X 80 Mm | 0,300 gr |
| 2 |
|
CH1505 | Guide Pin Ø36 X 113,70 Mm | 0,570 gr |
| 3 |
|
CH1513 | Bolt M16 X 1,5 X 80 Mm | 0,155 gr |
| 4 |
|
CH1514 | Bolt M16 X 1,5 X 87 Mm | 0,170 gr |
| 5 |
|
CH1521 | Bronze Bush Ø40 X Ø36 X 82 Mm | 0,155 gr |
| 6 |
|
CH1524 | Metal-Rubber Bush Ø35 Mm (Metal End) | 0,080 gr |
| 7 |
|
CH1542 | Steel Cap Ø26 x 11,5 mm | 0,010 gr |
| 8 |
|
CH1541 | Steel Cap Ø50 x 28 mm | 0,040 gr |
| 9 |
|
CH1553 | O-ring | 0,001 gr |
| 10 |
|
CH1531 | Inner Boot | 0,020 gr |
| 11 |
|
CH1551 | Inner Boot Ring | 0,005 gr |
Not: İlgili parçalardan bazı setlerde bir kaç adet bulunabilir.
| Ad | Değer |
| KNORR | K001532 |
| SCANIA | 1472919 |
| B | 09.801.06.31.0 |
