- Ürün Kodu : CH1093
- Ürün Adı : Caliper Guides & Seals Repair Kit
- Ürün Ölçüsü/Ağırlığı : 1,550 gr

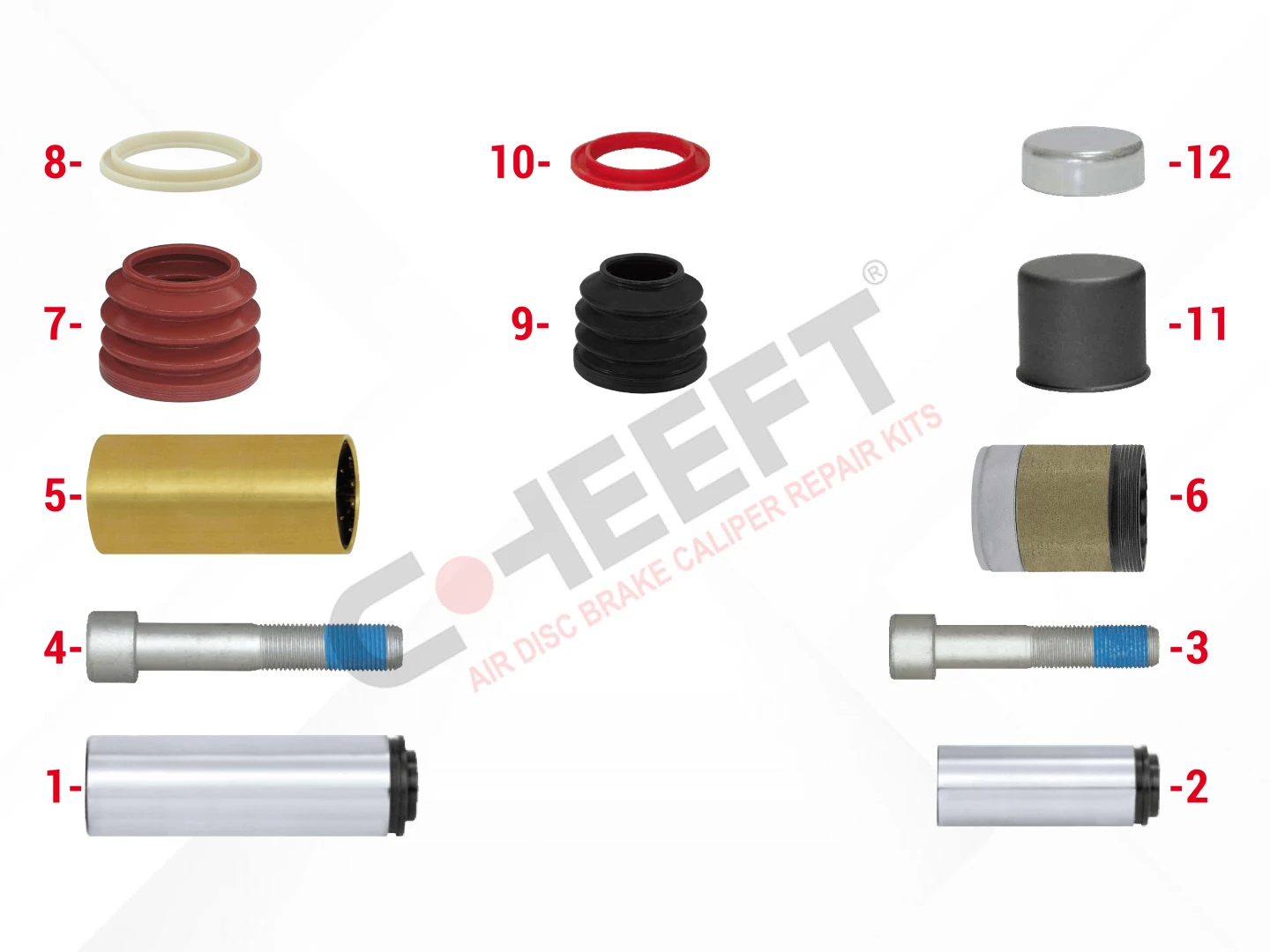

İçindekiler
| Sıra | Görsel | Kod | Adı | Boyut |
| 1 |
|
CH1505 | Guide Pin Ø36 X 113,70 Mm | 0,570 gr |
| 2 |
|
CH1510 | Guide Pin Ø32 X 84 Mm | 0,300 gr |
| 3 |
|
CH1513 | Bolt M16 X 1,5 X 80 Mm | 0,155 gr |
| 4 |
|
CH1514 | Bolt M16 X 1,5 X 87 Mm | 0,170 gr |
| 5 |
|
CH1521 | Bronze Bush Ø40 X Ø36 X 82 Mm | 0,155 gr |
| 6 |
|
CH1578 | Metal-Rubber Bush Ø39 mm (metal end) | 0,090 gr |
| 7 |
|
CH1531 | Inner Boot | 0,020 gr |
| 8 |
|
CH1551 | Inner Boot Ring | 0,005 gr |
| 9 |
|
CH1580 | Inner Boot | 0,015 gr |
| 10 |
|
CH1579 | Inner Boot Ring | 0,003 gr |
| 11 |
|
CH1577 | Steel Cap Ø42,5 x 37 mm | 0,045 gr |
| 12 |
|
CH1543 | Steel Cap Ø40 x 14,5 mm | 0,020 gr |
Not: İlgili parçalardan bazı setlerde bir kaç adet bulunabilir.
| Ad | Değer |
| KNR | K031427 - Z012003 |
| SCN | 1903071 |
